Brand: Aibo
Model No.: TMB-070-100
Substrate: WPC foam board
Laminated Material: Aluminum sheet
Standard Size: 1220x2440mm (4'x8')
Substrate Thickness: 10.0 mm
Substrate Density: 0.70 g/cm3
Packing: In PE bag /Carton / Pallet
MOQ: 1*20'HQ
Payment Terms: T/T (50% deposit in advance, 50% balance before shipment); L/C
Shipment Time: 15-20 days or negotiable
Specification
SUBSTRATES
The heart of all laminated panels and component parts. Available in different sizes, thicknesses, and materials
SURFACES
Durable and versatile surface products available in endless colors, designs, and sizes. From solids and graphic patterns to super-matte and high-gloss finishes.

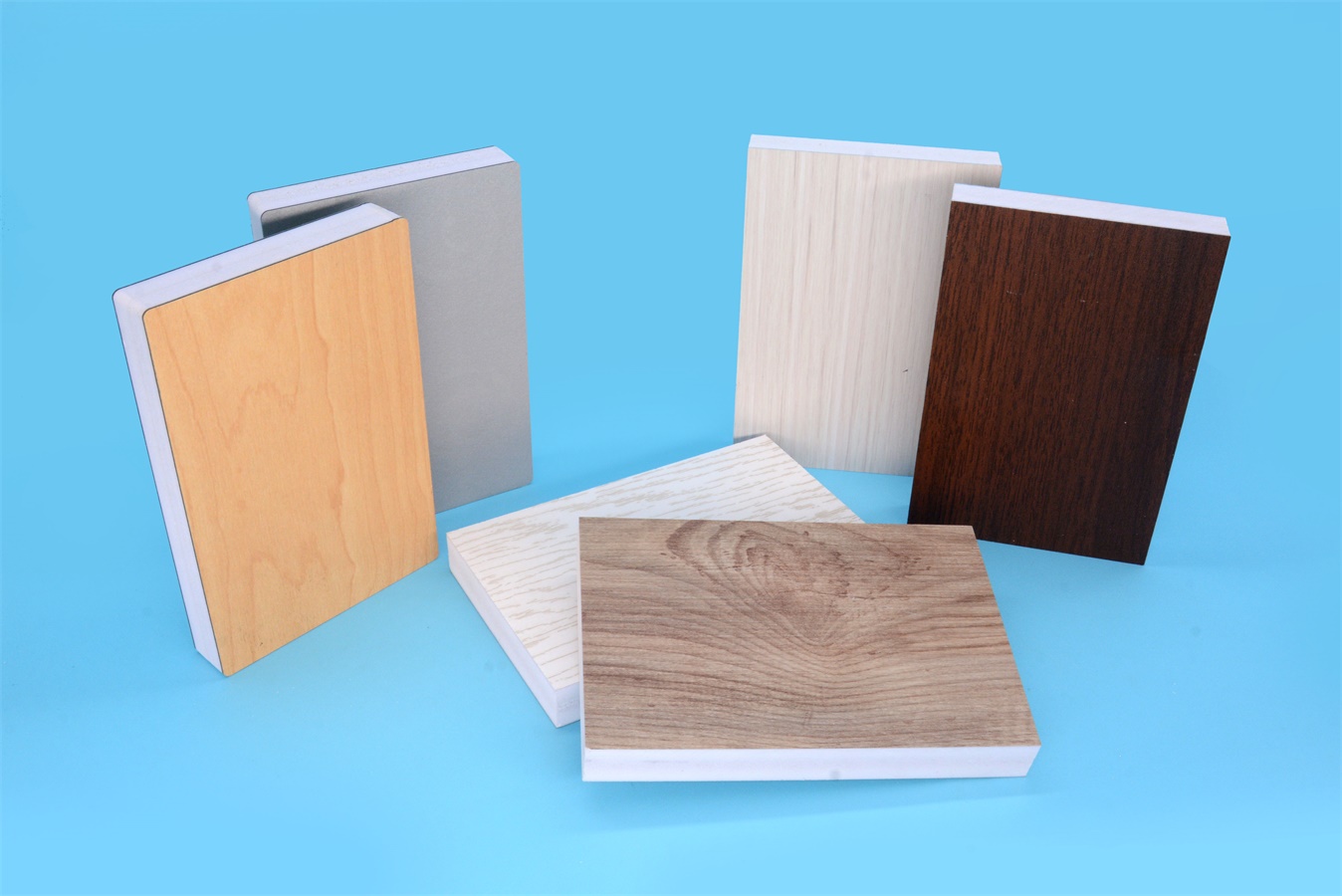

Board Structure
1. High density PVC foam board ( Celuka foam board & WPC foam board) as the substrate
2. Imported PUR hot melt glue as the adhesive
3. Covering Laminated film/plate as the decorative or protective surface on one side or both sides
Specification
| Thickness | 3-30mm | ||
| Substrate Density | 0.50 ~ 0.90 g/cm3 | ||
| Size | 1220X2440mm (4' X 8'); Custom size is available | ||
| Substrate | Celuka PVC foam board & WPC foam board | ||
| Surface: | All kinds of surface patterns via material lamination | ||
| Representative product: Thickness: 3mm Density: 0.75g/cm3 | |||
| Thickness: 12mm or 15 mm Density: 0.60 g/cm3 | |||
| Product related key words | PVC laminated board | PVC furniture board | Lamination board |
Product Features
Water & mildew resistant, mothproof, anti-corrosion, no peeling,
Paint-free, environment-friendly, no deformation, diversified lamination material options.
Application
Furnitures: kitchen cabinet, bathroom cabinet, wine cabinet, wardrobe, desk & bench
Others: exhibit booth, door & window, wall cladding, partition and many more.
What is PUR?
PUR hot melt is a one component polyurethane reactive hot melt adhesive. It is designed to give aggressive tack, with high green strength.
The product cures through reaction with moisture to form a tough, strong and virtually thermoset polymer.
PUR can be used to laminate difference surface materials to wood panels,doors and furnitures.
Surface Lamination
1. Laminated Film Options: HPL Sheet, High Glossy Film, Acrylic Sheet, Aluminum Sheet, Pvc, Paper, pet film, etc.
2. Adhesive: Adopting Imported High quality adhesive for the bonding; No formaldehyde and benzene elements, strong adhesion of 40-100 N/cm2 ,, safe and eco-friendly.
3. No delamination under the application environment of -40°C - 100°C.
4. Accepting in-house lamination processing on supplied materials or outsourcing materials.
